#Memory Usage Analysis

This section introduces how to analyze memory using Xcode.

#Analyze (static check)

Choose Product > Analyze or press Shift + Command + B to run automatically. Analyze uses syntax and memory context to find potential issues. It mainly detects four categories:

1. Logic errors: dereferencing null pointers, uninitialized variables.
2. Memory management errors: e.g., memory leaks.
3. Declaration errors: variables never used.
4. API call errors: missing libraries or frameworks.

#Leaks (dynamic check)

Xcode > Open Developer Tool > Instruments > Leaks

Choose Leaks, then specify the device and app to debug. In this example, an iPhone SE2 (iOS 14.5) simulator debugs the LynxExample app. Click the start button to check for memory leaks.

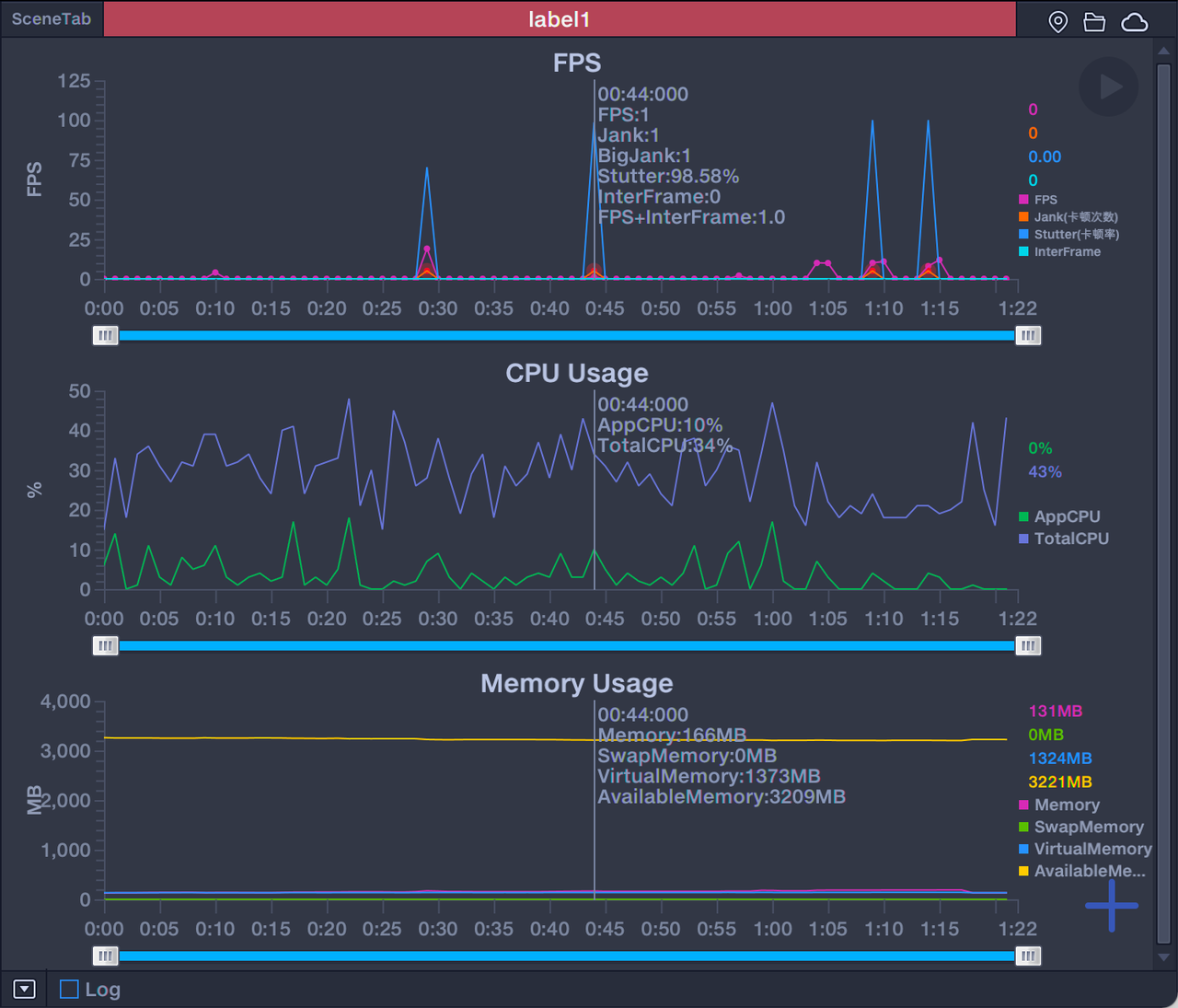

After starting, operate in the simulator or on device. If the Leaks window shows issues, jump to the corresponding code to debug. You can pause to inspect memory info shown in the chart. After debugging, you can save the results locally.

If a memory leak appears (example below), set the chart to Call Tree mode, then enable Invert Call Tree at the bottom of the window. Select any leak to jump to source code.

#Allocations (detailed allocation)

Xcode > Open Developer Tool > Instruments > Allocations

Similar to Leaks but focuses on detailed memory allocations. The lower list shows per-method memory usage. Check a graph to show a bar chart above. Click an item to view stack trace details; click the right-hand Stack Trace pane to jump into code and inspect allocations.

The code section is highlighted and the allocation ratio is shown.

#

This section introduces how to analyze memory using Android Studio.

#Profiler basics

First click the highlighted area in the toolbar; Android Studio performs a Build and then opens the Profiler window. From there you can run tests—click the ‘+’ icon to select a device connected via adb and the process to test.

Using a Xiaomi MIX (API 24), we run a ~45 s test and manually trigger a GC at 15 s. From left to right, the icons are GC, Capture Heap Dump, and manual Record (an option for devices below API 26 for memory analysis).

Over 45 s, the device’s memory changes are as follows:

In this example, after the manual GC, the app’s memory usage drops noticeably for a period.

Heap dumps show which objects are using memory at the time of capture. Especially after long user sessions, heap dumps reveal objects that should no longer be in memory, helping identify leaks. After clicking the Heap Dump icon, Java memory may temporarily increase because dumping runs in the same process and needs memory to collect data.

After capturing the heap dump, use the built-in analyzer. The table shows:

• Allocations: number of allocations in the heap.
• Native Size: total native memory used by this object type (Bytes). Visible on Android 7.0+ only. Some Java-allocated framework classNames (e.g., Bitmap) consume native memory.
• Shallow Size: total Java memory used by this object type (Bytes).
• Retained Size: total memory retained by all instances of this className (Bytes).

Click a className in the chart to open the Instance List window, then jump to source for inspection.

Or use the Reference window for more detailed checks and jump elsewhere for inspection.

After capturing a heap dump, you can also export hprof data from the SESSIONS window via Export Heap Dump. Use other tools (such as MAT) to further analyze the heap.

#Memory profiler

On devices below API 26, you need to manually record a time window before running memory performance analysis. Use the filter options (red circle) such as Arrange by className. In the table, select a className to jump to the Instance View, then to Allocation Call Stack to view stack traces and jump to source.

#Symptoms of memory leaks

• Many Full GCs during runtime.
• During a specific thread’s execution, manual GC has little effect.
• Many allocations and frees in a short time (memory graph jitter).

#Example leak and related analysis

final className LoadedInChildClassLoader {

  static final byte[] moreBytesToLeak = new byte[1024 * 1024 * 100];

  private static final ThreadLocal<LoadedInChildClassLoader> threadLocal
          = new ThreadLocal<>();

  public LoadedInChildClassLoader() {
    threadLocal.set(this);
  }
}

#Methods to trigger potential leaks

Apply pressure to app code and try to force leaks while cross-checking with the memory profiler. One way to induce leaks is to let the app run for some time, then inspect the heap; leaks may accumulate near the top of allocation. The smaller the leak, the longer the app needs to run to reveal it.

• Rotate the device repeatedly to trigger potential leaks.
• Switch between the debug app and other apps across different Activity states (e.g., go Home then return).

#Possible causes of leaks

• Long-running threads.
• A thread loads a className via the ClassLoader.
• A className allocates large memory.
• A thread clears references to all custom classNames and the ClassLoader that loaded them.
