#Integrate with Existing Apps

#Configuring Deps

1. Lynx

The core capabilities of Lynx Engine include basic capabilities such as parsing Bundle, style parsing, layout, and rendering views

Get the latest version of Lynx from Cocoapods. Then add Lynx to your Podfile:

source 'https://cdn.cocoapods.org/'

platform :ios, '10.0'

target 'YourTarget' do
  pod 'Lynx', '3.2.0', :subspecs => [
    'Framework',
  ]

  pod 'PrimJS', '2.12.0', :subspecs => ['quickjs', 'napi']
end

2. Lynx Service

Lynx Service includes LynxImageService, LynxLogService, etc. It aims to provide the ability to strongly correlate some host App features, allowing the App to inject custom Services at runtime, or use the default implementation provided by the official. For example, LynxImageService is implemented using the SDWebImage image library by default. Apps that do not integrate SDWebImage components can rely on other image libraries to implement Image Service. Lynx provides standard native Image, Log, and Http service capabilities, which can be quickly accessed and used by the access party;

Get the latest version of Lynx Service from Cocoapods. Then add Lynx Service to your Podfile:

source 'https://cdn.cocoapods.org/'

platform :ios, '10.0'

target 'YourTarget' do
  pod 'Lynx', '3.2.0', :subspecs => [
    'Framework',
  ]

  pod 'PrimJS', '2.12.0', :subspecs => ['quickjs', 'napi']

  # integrate image-service, log-service, and http-service
  pod 'LynxService', '3.2.0', :subspecs => [
      'Image',
      'Log',
      'Http',
  ]

  # ImageService dependencies:
  pod 'SDWebImage','5.15.5'
  pod 'SDWebImageWebPCoder', '0.11.0'
end

#Install Dependencies

Run pod install to install dependencies, then open your Xcode project. Additionally, make sure to disable the Sandbox Scripting capability.

NOTE

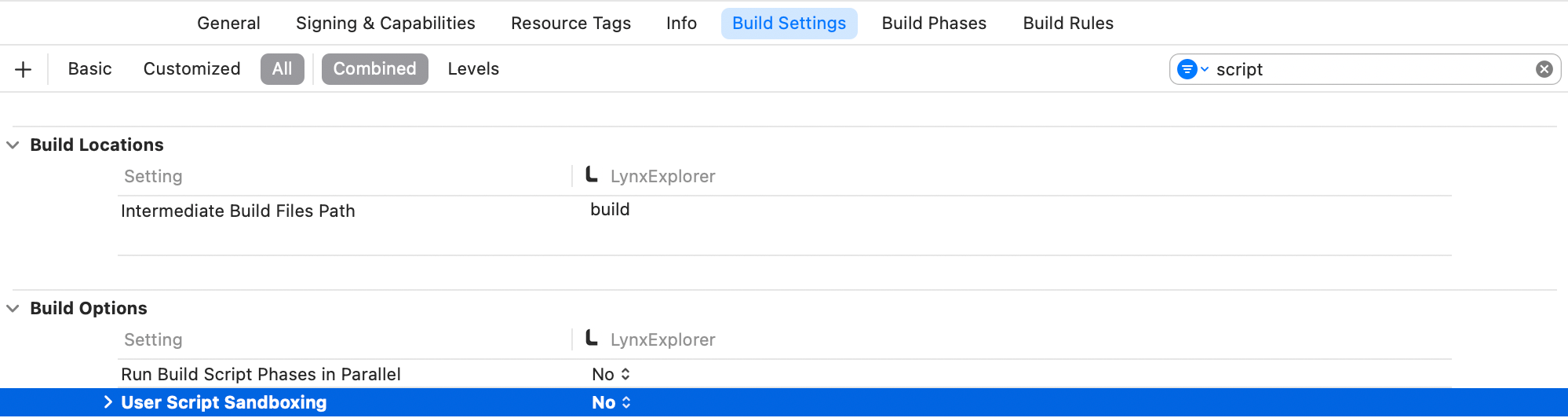

In order to disable the Sandbox scripting, in Xcode click on your app, then on build settings. Filter for script and set the User Script Sandboxing to NO.

#LynxEnv Initialization

LynxEnv provides a global initialization interface for the Lynx Engine. Please ensure that the initialization of LynxEnv occurs before any interface call of the Lynx Engine. For example, it can be initialized in AppDelegate

#import <Lynx/LynxEnv.h>
#import <Lynx/LynxView.h>

@implementation AppDelegate
- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {
  [LynxEnv sharedInstance];
  return YES;
}

#Create Bundle Loader

Lynx Engine itself does not have the ability to load resources, so it is necessary to initialize LynxEnv, or when constructing LynxView to pass in the specific implementation of the LynxTemplateProvider protocol. Lynx will use the injected resource loader to obtain the Bundle content

You can use various methods to obtain the contents of the Bundle. Here, we choose to embed the contents of the Bundle within the application.

1. First, please either generate the Bundle file from the Quick Start phase or download the file below to your local machine, and then follow these steps to embed the file:

2. Impl Bundle Loader

#import <Foundation/Foundation.h>
#import <Lynx/LynxTemplateProvider.h>

NS_ASSUME_NONNULL_BEGIN

@interface DemoLynxProvider : NSObject <LynxTemplateProvider>

@end

NS_ASSUME_NONNULL_END

#import <Foundation/Foundation.h>

#import "DemoLynxProvider.h"

@implementation DemoLynxProvider

- (void)loadTemplateWithUrl:(NSString*)url onComplete:(LynxTemplateLoadBlock)callback {
    NSString *filePath = [[NSBundle mainBundle] pathForResource:url ofType:@"bundle"];
    if (filePath) {
      NSError *error;
      NSData *data = [NSData dataWithContentsOfFile:filePath options:0 error:&error];
      if (error) {
        NSLog(@"Error reading file: %@", error.localizedDescription);
        callback(nil, error);
      } else {
        callback(data, nil);
      }
    } else {
      NSError *urlError = [NSError errorWithDomain:@"com.lynx"
                                                  code:400
                                                userInfo:@{NSLocalizedDescriptionKey : @"Invalid URL."}];
      callback(nil, urlError);
    }
}

@end

#Construct Basic LynxView

you may construct a basic LynxView as follows:

#import <Lynx/LynxView.h>

#import "ViewController.h"
#import "DemoLynxProvider.h"

@implementation ViewController

- (void)viewDidLoad {
    [super viewDidLoad];
    LynxView *lynxView = [[LynxView alloc] initWithBuilderBlock:^(LynxViewBuilder *builder) {
      builder.config = [[LynxConfig alloc] initWithProvider:[[DemoLynxProvider alloc] init]];
      builder.screenSize = self.view.frame.size;
      builder.fontScale = 1.0;
    }];
    lynxView.preferredLayoutWidth = self.view.frame.size.width;
    lynxView.preferredLayoutHeight = self.view.frame.size.height;
    lynxView.layoutWidthMode = LynxViewSizeModeExact;
    lynxView.layoutHeightMode = LynxViewSizeModeExact;
}
@end

#Add LynxView To The Window:

and then, adding the LynxView to the window.

#import <Lynx/LynxView.h>

#import "ViewController.h"
#import "DemoLynxProvider.h"

@implementation ViewController

- (void)viewDidLoad {
  [super viewDidLoad];

  // ...

  [self.view addSubview:lynxView];
}

@end

#Render View

After completing the above steps, all the work of initializing LynxView have been completed. Call the lynxView.loadTemplateFromURL method to render the corresponding Bundle onto the LynxView.

#import <Lynx/LynxView.h>

#import "ViewController.h"
#import "DemoLynxProvider.h"

@implementation ViewController

- (void)viewDidLoad {
  [super viewDidLoad];

  // ...

  [lynxView loadTemplateFromURL:@"main.lynx" initData:nil];
}

@end

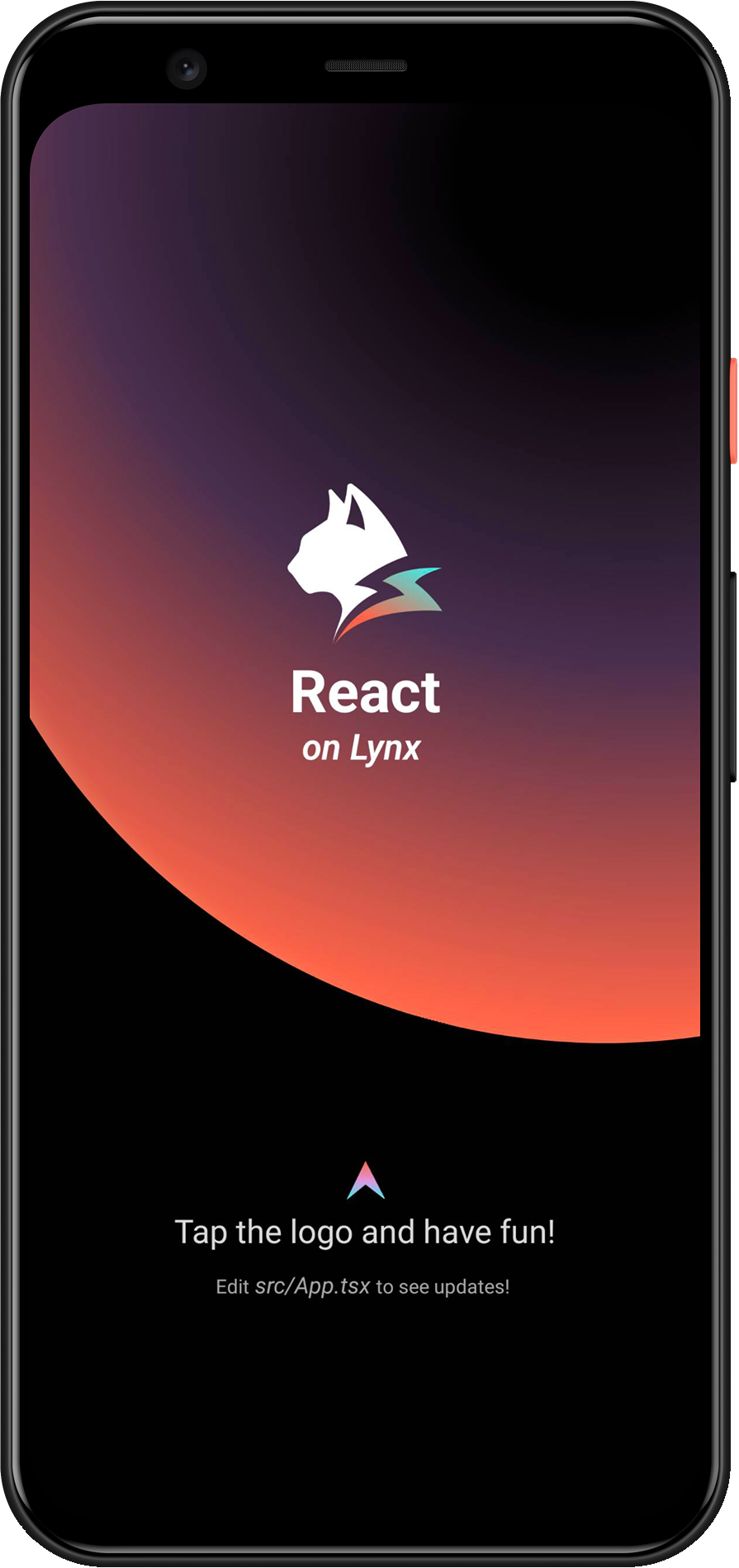

Then you will see the following interface on the screen:

#Configuring Gradle

1. Lynx

The core capabilities of Lynx Engine include basic capabilities such as parsing Bundle, style parsing, layout, rendering views and the basic code of the javascript runtime that Lynx pages rely on

dependencies {
    // lynx dependencies
    implementation "org.lynxsdk.lynx:lynx:3.2.0"
    implementation "org.lynxsdk.lynx:lynx-jssdk:3.2.0"
    implementation "org.lynxsdk.lynx:lynx-trace:3.2.0"
    implementation "org.lynxsdk.lynx:primjs:2.12.0"
}

2. Lynx Service

Lynx Service includes LynxImageService, LynxLogService, etc. It aims to provide the ability to strongly correlate some host App features, allowing the App to inject custom Services at runtime, or use the default implementation provided by the official.For example, LynxImageService is implemented using the Fresco image library by default. Apps that do not integrate Fresco components can rely on other image libraries, such as Glide to implement Image Service. Lynx provides standard native Image, Log, and Http service capabilities, which can be quickly accessed and used by the access party;

android.useAndroidX=true

dependencies {
    // lynx dependencies
    implementation "org.lynxsdk.lynx:lynx:3.2.0"
    implementation "org.lynxsdk.lynx:lynx-jssdk:3.2.0"
    implementation "org.lynxsdk.lynx:lynx-trace:3.2.0"
    implementation "org.lynxsdk.lynx:primjs:2.12.0"

    // integrating image-service
    implementation "org.lynxsdk.lynx:lynx-service-image:3.2.0"

    // image-service dependencies, if not added, images cannot be loaded; if the host APP needs to use other image libraries, you can customize the image-service and remove this dependency
    implementation "com.facebook.fresco:fresco:2.3.0"
    implementation "com.facebook.fresco:animated-gif:2.3.0"
    implementation "com.facebook.fresco:animated-webp:2.3.0"
    implementation "com.facebook.fresco:webpsupport:2.3.0"
    implementation "com.facebook.fresco:animated-base:2.3.0"

    implementation "com.squareup.okhttp3:okhttp:4.9.0"

    // integrating log-service
    implementation "org.lynxsdk.lynx:lynx-service-log:3.2.0"

    // integrating http-service
    implementation "org.lynxsdk.lynx:lynx-service-http:3.2.0"
}

#Configure obfuscation rules (Proguard)

The obfuscation rules for Lynx Engine are as follows. It is recommended to refer to the latest source code configuration.

# LYNX START
# use @Keep to annotate retained classes.
-dontwarn android.support.annotation.Keep
-keep @android.support.annotation.Keep class **
-keep @android.support.annotation.Keep class ** {
    @android.support.annotation.Keep <fields>;
    @android.support.annotation.Keep <methods>;
}
-dontwarn androidx.annotation.Keep
-keep @androidx.annotation.Keep class **
-keep @androidx.annotation.Keep class ** {
    @androidx.annotation.Keep <fields>;
    @androidx.annotation.Keep <methods>;
}

# native method call
-keepclasseswithmembers,includedescriptorclasses class * {
    native <methods>;
}
-keepclasseswithmembers class * {
    @com.lynx.tasm.base.CalledByNative <methods>;
}

# to customize a module, you need to keep the class name and the method annotated as LynxMethod.
-keepclasseswithmembers class * {
    @com.lynx.jsbridge.LynxMethod <methods>;
}

-keepclassmembers class *  {
    @com.lynx.tasm.behavior.LynxProp <methods>;
    @com.lynx.tasm.behavior.LynxPropGroup <methods>;
    @com.lynx.tasm.behavior.LynxUIMethod <methods>;
}

-keepclassmembers class com.lynx.tasm.behavior.ui.UIGroup {
    public boolean needCustomLayout();
}

# in case R8 compiler may remove mLoader in bytecode.
# as mLoader is not used in java and passed as a WeakRef in JNI.
-keepclassmembers class com.lynx.tasm.LynxTemplateRender {
    private com.lynx.tasm.core.LynxResourceLoader mLoader;
}

# the automatically generated setter classes use the class names of LynxBaseUI and ShadowNode and their subclasses.
-keep class com.lynx.tasm.behavior.ui.LynxBaseUI
-keep class com.lynx.tasm.behavior.shadow.ShadowNode
-keep class com.lynx.jsbridge.LynxModule { *; }
-keep class * extends com.lynx.tasm.behavior.ui.LynxBaseUI
-keep class * extends com.lynx.tasm.behavior.shadow.ShadowNode
-keep class * extends com.lynx.jsbridge.LynxModule { *; }
-keep class * extends com.lynx.jsbridge.LynxContextModule
-keep class * implements com.lynx.tasm.behavior.utils.Settable
-keep class * implements com.lynx.tasm.behavior.utils.LynxUISetter
-keep class * implements com.lynx.tasm.behavior.utils.LynxUIMethodInvoker
-keep class com.lynx.tasm.rendernode.compat.**{
    *;
}
-keep class com.lynx.tasm.rendernode.compat.RenderNodeFactory{
    *;
}
# LYNX END

#Lynx Service Initialization

• Lynx Service provides host feature-related capabilities and it is recommended to complete the initialization of Lynx Service during the Application#onCreate lifecycle of the application.
• Lynx Service needs to be actively injected

<application
  android:name=".YourApplication">
</application>

import android.app.Application;

import com.facebook.drawee.backends.pipeline.Fresco;
import com.facebook.imagepipeline.core.ImagePipelineConfig;
import com.facebook.imagepipeline.memory.PoolConfig;
import com.facebook.imagepipeline.memory.PoolFactory;
import com.lynx.service.http.LynxHttpService;
import com.lynx.service.image.LynxImageService;
import com.lynx.service.log.LynxLogService;
import com.lynx.tasm.service.LynxServiceCenter;

public class YourApplication extends Application {

    @Override
    public void onCreate() {
        super.onCreate();
        initLynxService();
    }

    private void initLynxService() {
        // init Fresco which is needed by LynxImageService
        final PoolFactory factory = new PoolFactory(PoolConfig.newBuilder().build());
        ImagePipelineConfig.Builder builder =
                ImagePipelineConfig.newBuilder(getApplicationContext()).setPoolFactory(factory);
        Fresco.initialize(getApplicationContext(), builder.build());

        LynxServiceCenter.inst().registerService(LynxImageService.getInstance());
        LynxServiceCenter.inst().registerService(LynxLogService.INSTANCE);
        LynxServiceCenter.inst().registerService(LynxHttpService.INSTANCE);
    }
}

#LynxEnv Initialization

LynxEnv provides the global initialization interface for the Lynx Engine. Please ensure that the initialization of LynxEnv occurs before any interface calls to the Lynx Engine. It is recommended to complete the initialization of LynxEnv during the Application#onCreate lifecycle of the application.

import com.lynx.tasm.LynxEnv;

public class YourApplication extends Application {

    @Override
    public void onCreate() {
        super.onCreate();
        initLynxService();
        initLynxEnv();
    }

    private void initLynxEnv() {
        LynxEnv.inst().init(
            this,
            null,
            null,
            null
        );
    }
}

#Create Bundle Loader

Lynx Engine itself does not have the ability to integrate downloading resources, so the existing app needs to provide the specific implementation of AbsTemplateProvider, and inject it when initializing LynxEnv or constructing LynxView. Lynx will use the injected resource loader to obtain the Bundle content

You can use various methods to obtain the contents of the Bundle. Here, we choose to embed the contents of the Bundle within the application.

1. First, please place the Bundle file generated in the Quick Start stage in the src/main/assets directory, or you can download the file below to your local machine and place it in the same directory:

app
└── src
    └── main
        ├── java
        ├── res
        └── assets
            └── main.lynx.bundle

2. Impl Bundle Loader

import android.content.Context;
import com.lynx.tasm.provider.AbsTemplateProvider;
import java.io.ByteArrayOutputStream;
import java.io.IOException;
import java.io.InputStream;

public class DemoTemplateProvider extends AbsTemplateProvider {
    private Context mContext;

    DemoTemplateProvider(Context context) {
        this.mContext = context.getApplicationContext();
    }

    @Override
    public void loadTemplate(String uri, Callback callback) {
        new Thread(new Runnable() {
            @Override
            public void run() {
                try (InputStream inputStream = mContext.getAssets().open(uri);
                     ByteArrayOutputStream byteArrayOutputStream = new ByteArrayOutputStream()) {
                    byte[] buffer = new byte[1024];
                    int length;
                    while ((length = inputStream.read(buffer)) != -1) {
                        byteArrayOutputStream.write(buffer, 0, length);
                    }
                    callback.onSuccess(byteArrayOutputStream.toByteArray());
                } catch (IOException e) {
                    callback.onFailed(e.getMessage());
                }
            }
        }).start();
    }
}

#Construct LynxView

LynxView is the basic rendering view provided by Lynx Engine. LynxView inherits from the native Android View. You can quickly construct a LynxView and add it arbitrarily to the native Android view tree.

import android.app.Activity;
import android.os.Bundle;

import com.lynx.tasm.LynxView;
import com.lynx.tasm.LynxViewBuilder;

public class MainActivity extends Activity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        LynxView lynxView = buildLynxView();
        setContentView(lynxView);
    }

    private LynxView buildLynxView() {
        LynxViewBuilder viewBuilder = new LynxViewBuilder();
        viewBuilder.setTemplateProvider(new DemoTemplateProvider(this));
        return viewBuilder.build(this);
    }
}

#3.1 Render view

After completing the above steps, all the work of initializing LynxView have been completed. Call the lynxView.renderTemplateUrl method to render the corresponding Bundle onto the LynxView view.

public class MainActivity extends Activity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        LynxView lynxView = buildLynxView();
        setContentView(lynxView);

        String url = "main.lynx.bundle";
        lynxView.renderTemplateUrl(url, "");
    }
}

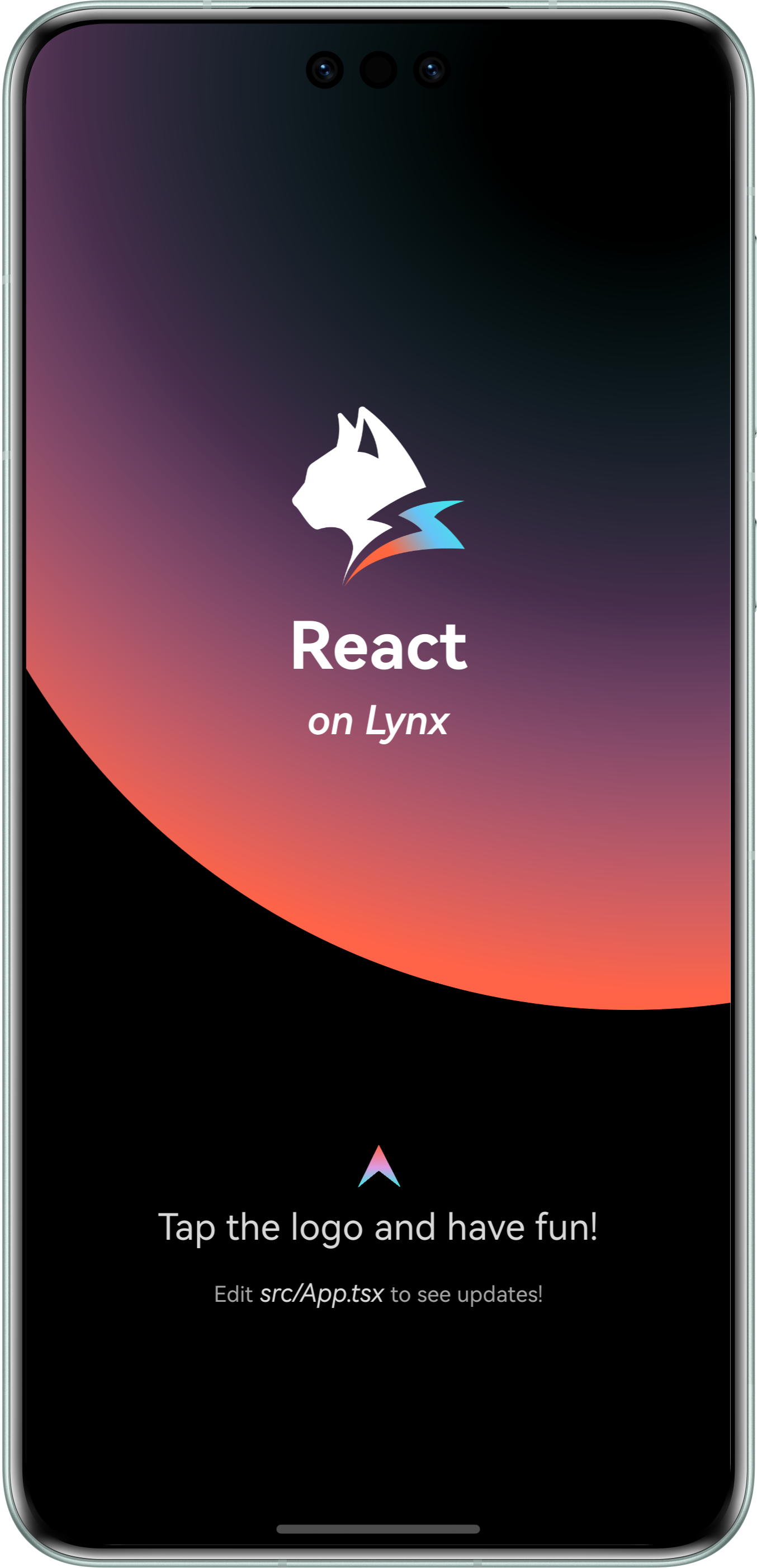

Then you will see the following interface on the screen:

#Add web configuration

1. Enter the previously created Lynx project:

cd <lynx-project-name>

2. Add web configuration (environments.web) to lynx.config.ts:

import { defineConfig } from '@lynx-js/rspeedy';
import { pluginReactLynx } from '@lynx-js/react-rsbuild-plugin';

export default defineConfig({
  plugins: [pluginReactLynx()],
  environments: {
    web: {
      output: {
        assetPrefix: '/',
      },
    },
    lynx: {},
  },
});

#Build

Run:

npm run build

You will see an additional dist/main.web.bundle file in this project, which is the final web build artifact.

#Create a web project

Create a new project at the same level as the Lynx project above and run:

npm create rsbuild@latest

Follow the prompts to create a React project.

#Configure the project

1. Navigate to the created project:

cd <web-project-name>

2. Install dependencies

npm install @lynx-js/web-core @lynx-js/web-elements

3. Import these dependencies in src/app.tsx

import './App.css';
import '@lynx-js/web-core/index.css';
import '@lynx-js/web-elements/index.css';
import '@lynx-js/web-core';
import '@lynx-js/web-elements/all';

const App = () => {
  return (
    <lynx-view
      style={{ height: '100vh', width: '100vw' }}
      url="/main.web.bundle"
    ></lynx-view>
  );
};

export default App;

4. Update rsbuild.config.ts

import { defineConfig } from '@rsbuild/core';
import { pluginReact } from '@rsbuild/plugin-react';
import path from 'node:path';
import { fileURLToPath } from 'node:url';
const __filename = fileURLToPath(import.meta.url);
const __dirname = path.dirname(__filename);

export default defineConfig({
  plugins: [pluginReact()],
  server: {
    publicDir: [
      {
        name: path.join(
          __dirname,
          '../',
          // Please replace this with your actual Lynx project name
          'lynx-project',
          'dist',
        ),
      },
    ],
  },
});

#Start the project

Run:

npm run dev

Visit http://localhost:3000 to see your Lynx application.
