Flexible Box Layout

If you need to make the size of child elements adapt to the space of the parent element (such as expanding child elements to fill the unused space or shrinking child elements to avoid overflow), you can set the display: flex property to the parent element and use the flexible box layout.

INFO

For more information, please refer to the CSS Flexible Box Layout on MDN. Lynx supports common flexible box layout properties and in most cases aligns with Web standards. For the supported properties, please refer to the Reference section.

The following examples show typical features of the flexible box layout.

Typical Features

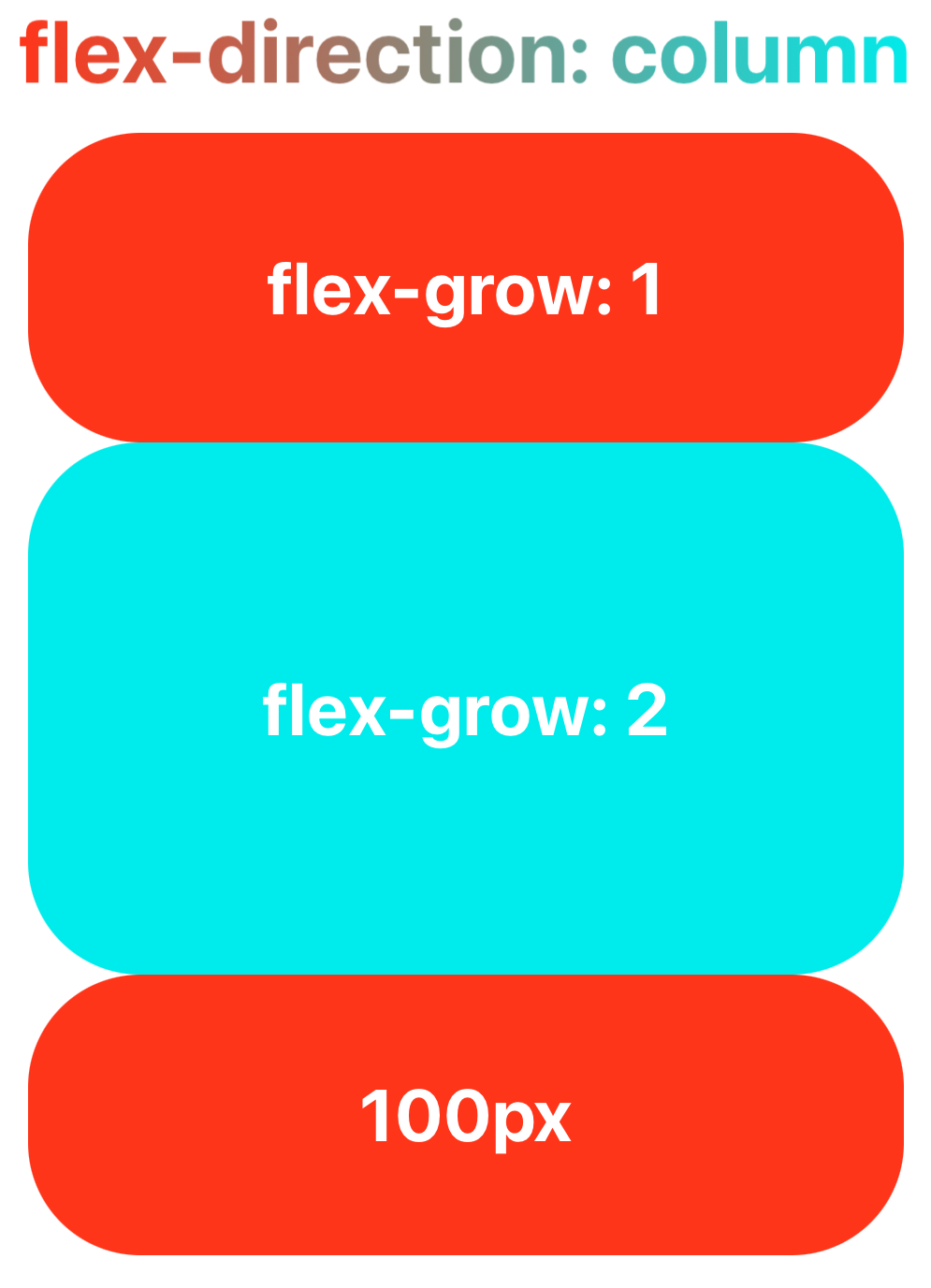

Filling the Parent Element with`flex-grow`

The flex-grow property helps you allocate the remaining space of the parent element to the size of the sub-elements based on the weight declared by flex-grow.

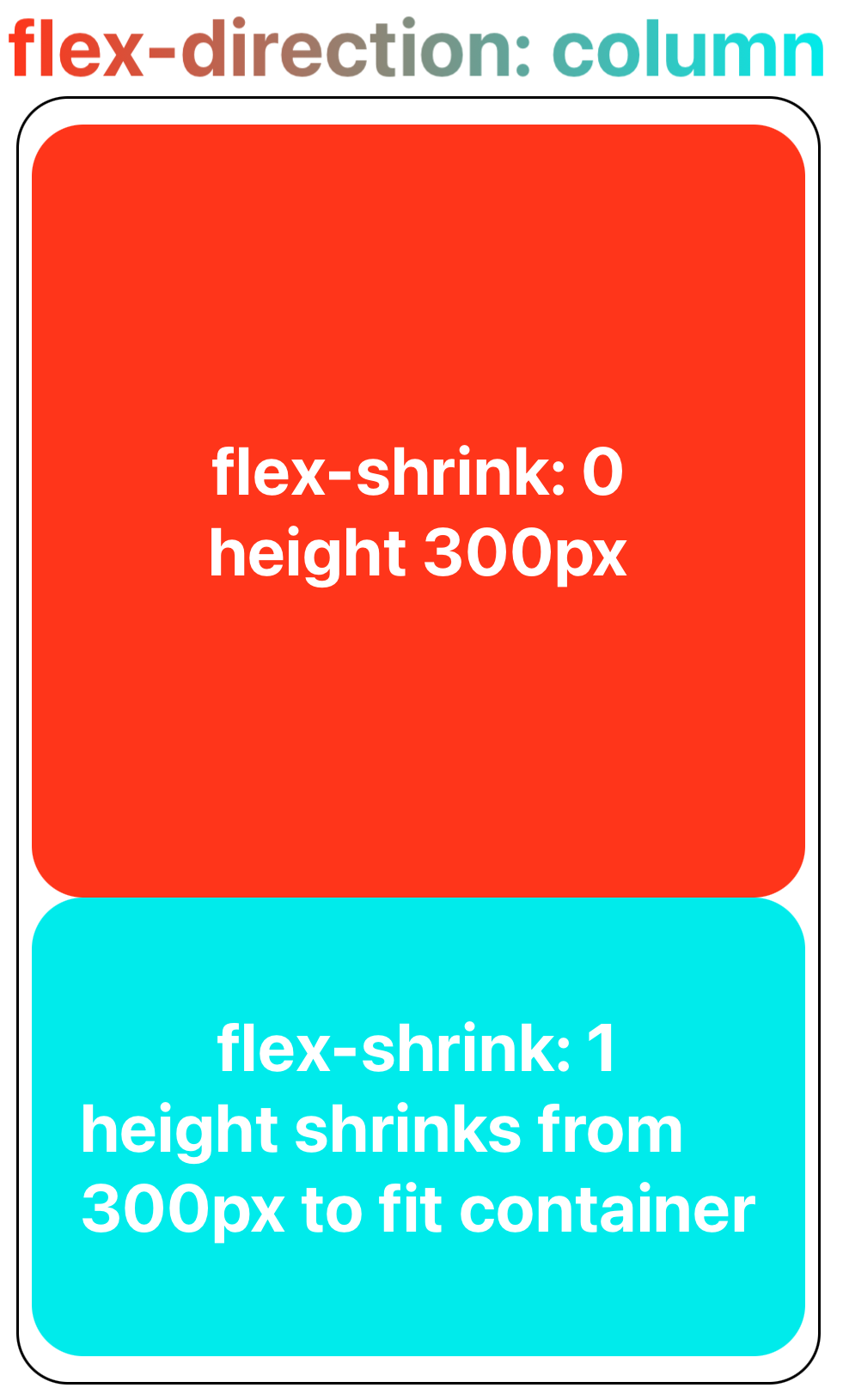

Shrinking Child Elements with`flex-shrink`

When the child elements are about to overflow the parent element, the child elements can shrinked according to the weight declared by flex-shrink to fit the size of the parent element.

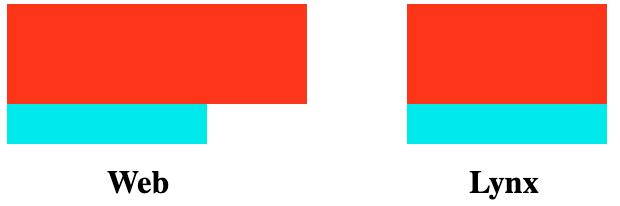

Lynx differs from Web in the minimum value for shrinking sub-elements.

Lynx currently does not support min-content, and therefore treats it temporarily as 0px. This means that while the Web can ensure sub-elements do not shrink below their minimum content width when fitting the parent element size, Lynx cannot guarantee this at present.

Code

<div
  style="width:100px;
            height:70px;
            display:flex;
            background-color:rgb(0, 235, 235);"
>
  <div
    style="display:flex;
              height:50px;
              background-color:rgb(255, 53, 26);"
  >
    <div
      style="width:150px;
                height:50px;"
    ></div>
  </div>
</div>

Inconsistent behavior between Web and Lynx

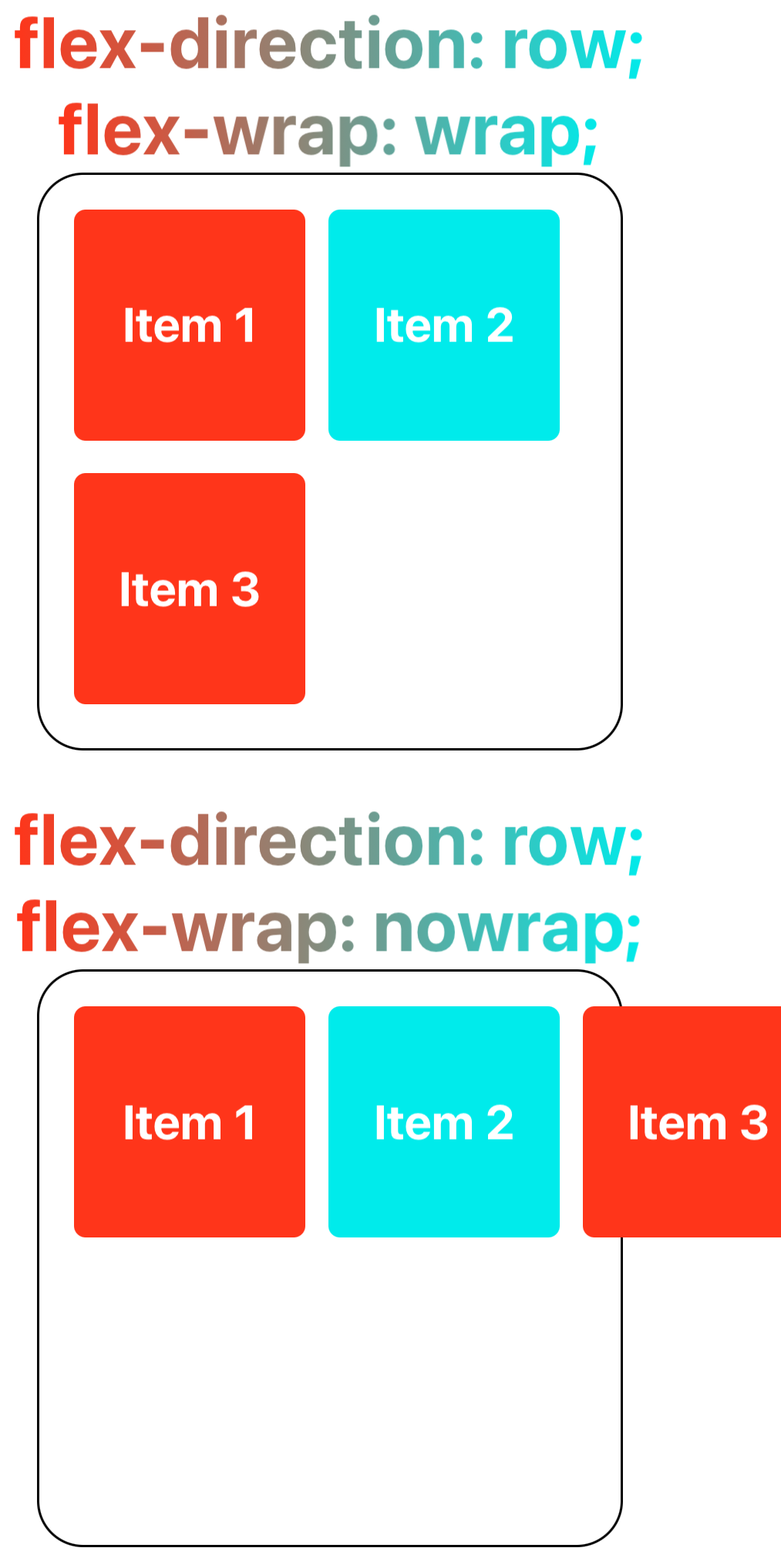

Wrapping with`flex-wrap`

The flex-wrap property allows content that doesn't fit on a single line to be displayed on subsequent lines. This attribute specifies whether flex elements are shown in a single or multiple lines. When allowed to wrap, this attribute can control the stacking direction of the lines.

Reference

Currently, Lynx supports the following common flexible box layout properties:

CSS Properties
Alignment Properties

For more usage details, please refer to the CSS Flexible Box Layout on MDN.
