#Direct Manipulation of Elements

In daily development, modern front-end frameworks handle most element tree and node property updates for us. However, there are times when you need to manipulate elements directly, such as controlling media players, manipulating view behavior, getting element information, or directly modifying styles.

These functionalities are typically implemented by components on the client side, and you need to access them through element references.

#Manipulating Elements in Background Thread

#Example: Auto-scrolling

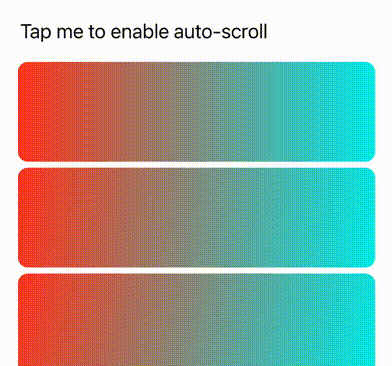

Let's try a simple requirement - auto-scrolling the page. We need to call the autoScroll method of the <scroll-view /> element:

element-manipulationsrc/ref-background/App.tsx

Preview

This example demonstrates two steps for manipulating elements: creating a reference using useRef and binding it to the target element using ref={scrollRef}, then calling the element method using invoke() in the event handler.

#Obtaining a Reference to an Element Usingref

If you're familiar with React, you'll find that using ref is very similar:

const nodeRef = useRef<NodesRef>(null);
// ...
<text ref={nodeRef} />;

However, note that in Lynx, the type of node reference is NodesRef, which is different from React. If you want to learn more about using references, you can refer to Manipulating the Element with Refs.

#Manipulating an Element via Its Reference

After obtaining a node reference, let's see how to use it. NodesRef provides a series of useful APIs.

For example, you can use NodesRef.invoke() to call the element's methods. Each component provides specific methods that are implemented on the client side and exposed for front-end use.

When calling a method, you can pass required parameters through params, handle successful results using the success callback, and handle potential errors using the fail callback. Remember to call exec() at the end to submit the operation for actual execution:

ref
  .invoke({
    method: 'boundingClientRect',
    params: {
      relativeTo: 'screen',
    },
    success: (res) => {
      // Handle successful result
      const { left, top, width, height } = res;
    },
    fail: (err) => {
      // Handle potential errors
      console.error('Failed to get element position:', err);
    },
  })
  .exec();

#Manipulating Elements in Main Thread

If you want better performance and more intuitive code, you can consider manipulating elements in the main thread. It offers lower operation latency with faster UI response and more natural API calls.

Let's see how to implement the same functionality in the main thread:

element-manipulationsrc/ref-main-thread/App.tsx

Preview

The main changes here are: node operations need to be written in main thread functions; using useMainThreadRef and main-thread:ref to get the main thread node reference; the node reference type becomes MainThread.Element, which provides various methods for manipulating nodes; and we used MainThread.Element.invoke() to call the node's autoScroll method.

#Obtaining Element References via Selectors

In certain scenarios, such as when you need to batch operate on elements or dynamically find elements, using selectors can be particularly useful.

#Background Thread

In the background thread, we can use the SelectorQuery API to find elements. Let's look at an example:

element-manipulationsrc/selector-query-background/App.tsx

Preview

Using selectors is simple: first create a query object using lynx.createSelectorQuery(), then use methods like select() to find elements. To learn about all supported selectors, you can check our API documentation.

#Main Thread

When manipulating elements in the main thread, things become even simpler. You can use the browser-like lynx.querySelector() API:

element-manipulationsrc/selector-query-main-thread/App.tsx

Preview

#Obtaining a Reference to the Event Target Element

When handling events, we often need to manipulate the element that triggered the event.

#Main Thread

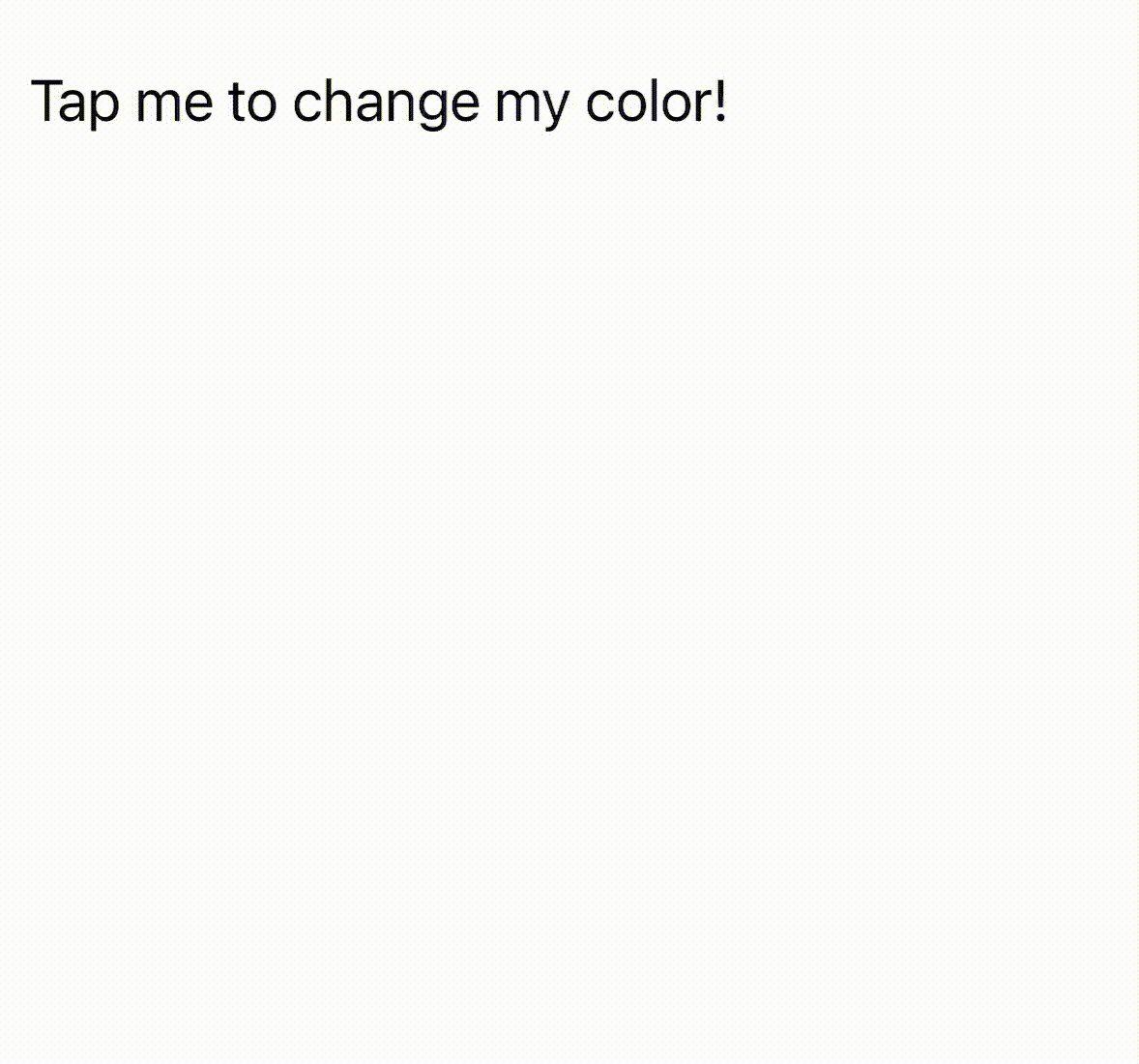

In the main thread, you can get the element reference directly from the event object. Similar to browsers, we provide target and currentTarget properties:

element-manipulationsrc/event-main-thread/App.tsx

Preview

Here we used MainThread.Element.setStyleProperty() to modify styles.

#UsinggetElementById API

getElementById is currently our main API for handling animations and CSS variables. Although this is a traditional interface, it's still the best choice when you need to execute JavaScript animations or dynamically modify CSS variable values.

To learn more about usage, you can check Animation API documentation and CSS Variables Operation Guide. We are developing more modern APIs to replace getElementById, stay tuned.
