border-radius#

#Introduction

The border-radius CSS property rounds the corners of an element's outer border edge. You can set a single radius to make circular corners, or two radii to make elliptical corners.

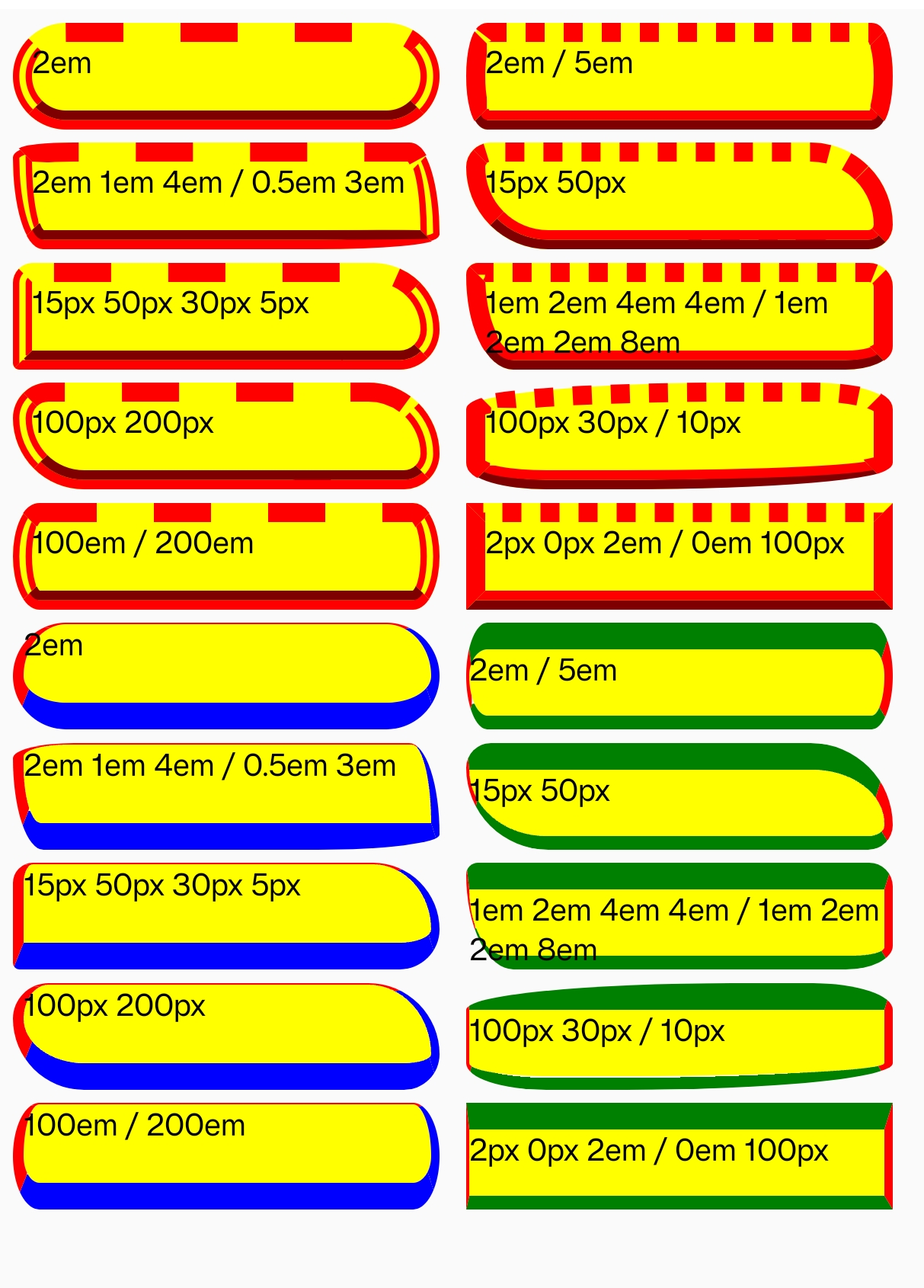

#Examples

css-apisrc/border-radius/App.tsx

Preview

#Syntax

/* The syntax of the first radius allows one to four values */
/* Radius is set for all 4 sides */
border-radius: 10px;

/* top-left-and-bottom-right | top-right-and-bottom-left */
border-radius: 10px 5%;

/* top-left | top-right-and-bottom-left | bottom-right */
border-radius: 2px 4px 2px;

/* top-left | top-right | bottom-right | bottom-left */
border-radius: 1px 0 3px 4px;

/* The syntax of the second radius allows one to four values */
/* (first radius values) / radius */
border-radius: 10px / 20px;

/* (first radius values) / top-left-and-bottom-right | top-right-and-bottom-left */
border-radius: 10px 5% / 20px 30px;

/* (first radius values) / top-left | top-right-and-bottom-left | bottom-right */
border-radius: 10px 5px 2em / 20px 25px 30%;

/* (first radius values) / top-left | top-right | bottom-right | bottom-left */
border-radius: 10px 5% / 20px 25em 30px 35em;

The border-radius property is specified as:

• one, two, three, or four <length> or <percentage> values. This is used to set a single radius for the corners.
• followed optionally by "/" and one, two, three, or four <length> or <percentage>values. This is used to set an additional radius, so you can have elliptical corners.

#Values

• <length> Denotes the size of the circle radius, or the semi-major and semi-minor axes of the ellipse, using length values. Negative values are invalid.

• <percentage> Denotes the size of the circle radius, or the semi-major and semi-minor axes of the ellipse, using percentage values. Percentages for the horizontal axis refer to the width of the box; percentages for the vertical axis refer to the height of the box. Negative values are invalid.

#Formal definition

#Formal syntax

border-radius =
  <length-percentage [0,∞]>{1,4} [ / <length-percentage [0,∞]>{1,4} ]?

<length-percentage> =
  <length>      |
  <percentage>

#Difference from Web

• mdn:border-radius

Global values are not supported, (inherit, initial, revert, unset, etc).

#Compatibility

LCD tables only load in the browser
